Desktop Single Column Universal Tensile Tester Plastic Bottle Cup Compression Testing Machine

MOQ : 1 set

Delivery Time : 5-10 work days

Data Sampling Frequency : 200 times/sec

Certification : CE,ISO

Force Measurement Accuracy : Within ±0.5% of indicated value

Model Number : ZL-8004A

Capacity Selection : 2, 5, 10, 20, 50, 100, 200kg (optional,can be customized)

Payment Terms : Western Union,T/T,D/P,D/A,L/C

Effective Stretching Space : 500mm (excluding fixtures)

Place of Origin : China

Unit Switching : Kg, lb, N

Packaging Details : wooden case packaging

Price : UDS1800

Effective Test Width : 150mm

Supply Ability : 60 Sets

Test Speed Range : 0.01–500mm/min

Brand Name : ZL

Name : Desktop Single Column Universal Tensile Tester

Contact Now

Desktop Single Column Universal Tensile Tester Plastic Bottle Cup Compression Testing Machine
Equipment Overview

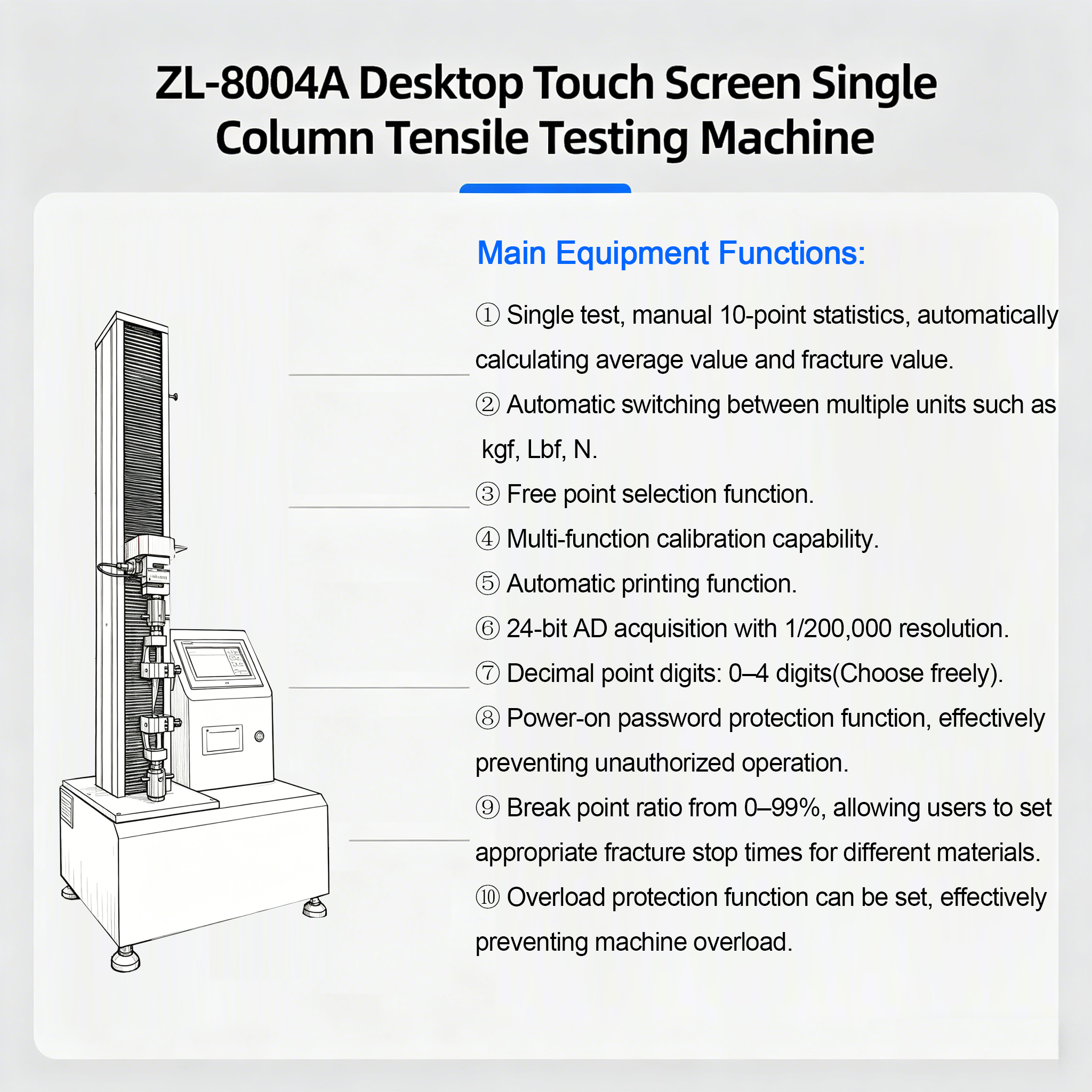

The ZL-8004A Electronic Tensile Testing Machine is a compact, benchtop unit featuring simple design and easy operation. It utilizes an electronic control system with a speed-regulating motor that drives a T-screw through a gear mechanism, moving the load sensor up or down to perform tensile (pulling) or compression (pushing) tests on samples.

Real-time force measurement and test speed are displayed on the screen. With straightforward operation, it's particularly well-suited for quality control on production lines. This model is designed for non-metallic and metallic materials with test loads up to 2000N.

Main Functions

This versatile testing machine handles multiple test types including:

  • Tension (pulling)
  • Compression (pushing)
  • Bending
  • Shearing
  • Peeling (at 90° or 180°)
  • Tearing
  • Two-point elongation (requires optional extensometer)

Suitable for testing materials and products across various industries—textiles, rubber, plastics, synthetic leather, tape, adhesives, plastic films, composites, electronics, metals, and more. These tests help determine product quality and performance.

Key Features
Attractive, Durable Design
Aluminum profiles with electrostatic spray finish provide a premium appearance comparable to high-end imported machines.
Clear Digital Display
Backlit LCD screen clearly shows force values and distinguishes between tension and compression readings, easily readable in low-light conditions.
Multiple Measurement Units
Choose between N, kgf, or lbf with automatic switching capability as needed.
Peak Value Capture
Captures and displays peak force values for both tension and compression directions in a single test, with manual reset capability.
Safety Protections
Includes both travel limit and overload stop functions for safe operation.
Compact and User-Friendly
Single-column benchtop design is sleek and space-saving, comfortable for seated operation and daily use.
Standards Compliance

This machine meets the requirements of the following ASTM standards:

  • ASTM D1004
  • ASTM D882
  • ASTM D638
  • ASTM D1693
  • ASTM D3330
